Conveyor Belt Scales

BCS1 and BCS2 Conveyor Belt Scale

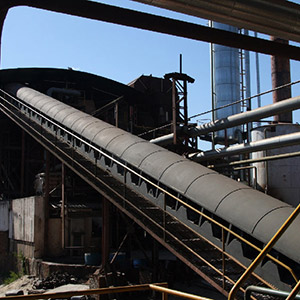

Our under-structures are custom built to fit your existing conveyor system and ensure many years of rugged performance. We utilize a fully electronic single or dual idler weighing assembly. Only the highest accuracy load cells are used to allow for the most precise and repeatable weighing. BCS speed sensors are customized to fit your existing head or tail pulley or a contact point on the return belt which gives you a true representation of belt speed in feet per minute or meters per minute. Coupled with the full-functioned Legend III integrator, the user can incorporate the scale into most any data collection or control system without the need to add expensive upgrades.

Legend III Belt Scale Integrator

Legend III Belt Scale Integrator

  • Multi-line, 6 digit display
  • 16 alphanumeric LED characters
  • 8 set points, 4 inputs
  • RS232, RS422 or RS485 serial output
  • Multiple levels of password protection
  • Operating temperature range of -20C to +50C
  • User friendly menu driven operations
  • Auto zero, electronic calibration and print function
  • Stainless steel NEMA4x enclosure
  • Time and date
  • Active temperature compensation for zero and span
  • 10VDC load cell excitation
  • 240mA load cell current
  • 2 conversions per second
  • Active 2Hz or wide band analog filtering
  • Six digit (7 segment) .55 in. LED display
  • Auto zero range programmable to 99.9% of scale capacity
  • Auto zero maintenance programmable to 99.9% of scale capacity
  • Digital serial output: port 1 is simplex/duplex, RS232, RS422, RS485 or 20mA current loop; port 2 is simplex only, RS232 or 20mA
  • 4 accumulators
  • 10 alpha numeric IDs up to eight characters each
  • One 6 digit counter
